LubX®: 滑动塑料 — 滑动材料 — 耐磨

输送机与输送系统用滑动塑料

LubX® 产品系列

不同行业的输送系统在其应用中会承受不同的负载和环境条件,这些负载和环境条件会对所使用材料的摩擦和磨损性能产生非常重大的影响。

随着 2012 年 LubX® 的推出,Röchling 革新了对滑动材料的观察工作,这是首次在实际应用中将各滑动副的相互作用纳入材料开发。

现如今,您会发现我们的 LubX® 产品系列中有七种可调节的滑动性能出色的滑动塑料它们适用于不同的滑动和/或环境条件

在开发滑动材料的过程中,我们进行了大量不同条件下的摩擦学试验,并使用我们自己的测试台以及塑料和输送技术领域领先的科学机构的测试台进行了材料测试。

LubX CV+ | New material solution for high-speed systems

With LubX® CV+, Röchling Industrial is expanding the proven LubX® product family with a solution specially optimised for high-speed systems. The further developed material properties ensure further reduced friction, improve energy efficiency and reduce maintenance and servicing costs - ideal for modern intralogistics processes with high speeds.
Comparative tests with other materials show that LubX® CV + impresses with significantly optimised sliding properties and sets new standards for high-performance applications in conveyor and automation technology.

Overview of LubX® sliding materials

 Antistatic     Noise reductionFood-safeProducts
   FDAEU 10/2011RodSheetProfileMachined Part
LubX® CV+
LubX® CV
LubX® CV AST color ✓*
LubX® C
LubX® CQ
LubX® S
LubX® AST black
LubX® AST color✓*

✓= available

● = Major improvement (compared to a standard PE-UHMW)

○ = Improvement (compared to a standard PE-UHMW)

*only available on request

Material Selection

Our sliding materials have been used in conveyor systems all over the world for decades. What we know: Every system has different requirements for the sliding materials used. The information in the table is an initial guide, but on no account can itreplace expert advice on selecting the right sliding material for your conveyor system.

Key factors

The performance and service life of sliding materials for conveyor systems is determined by various influencing factors. These have to be taken into account for the selection. For instance:

  • Mating surfaces
  • Mechanical load
  • Design requirements
  • Dimensions and tolerances

Contact us

We would be happy to assist you in selecting the best sliding material for your application. Just use our contact form at the bottom of the page and drop us a note.

Why is it so important to consult us regarding the proper choice of sliding material?

There is no typical material characteristic value for the friction and wear of a material. The selection is about the "system properties", i.e. the analysis of further influencing variables and parameters from the individual application. The tribological system (Tribosystem for short) was introduced for this purpose. In addition to the two friction partners, it also comprises further influencing variables such as the intermediate material, the ambient medium and the ambient conditions present, such as the movement sequence, the length of time, the pressure and the temperature in addition to the conveying velocity and the layout of the conveyor system. A suitable sliding material for an application can only be selected if all parameters have been systematically considered. (See: Czichos, Habig (2015), p. 14, Tribology Manual, 4th Edition, Springer-Verlag, Wiesbaden)

Low friction plastics - low friction materials - sliding material
+

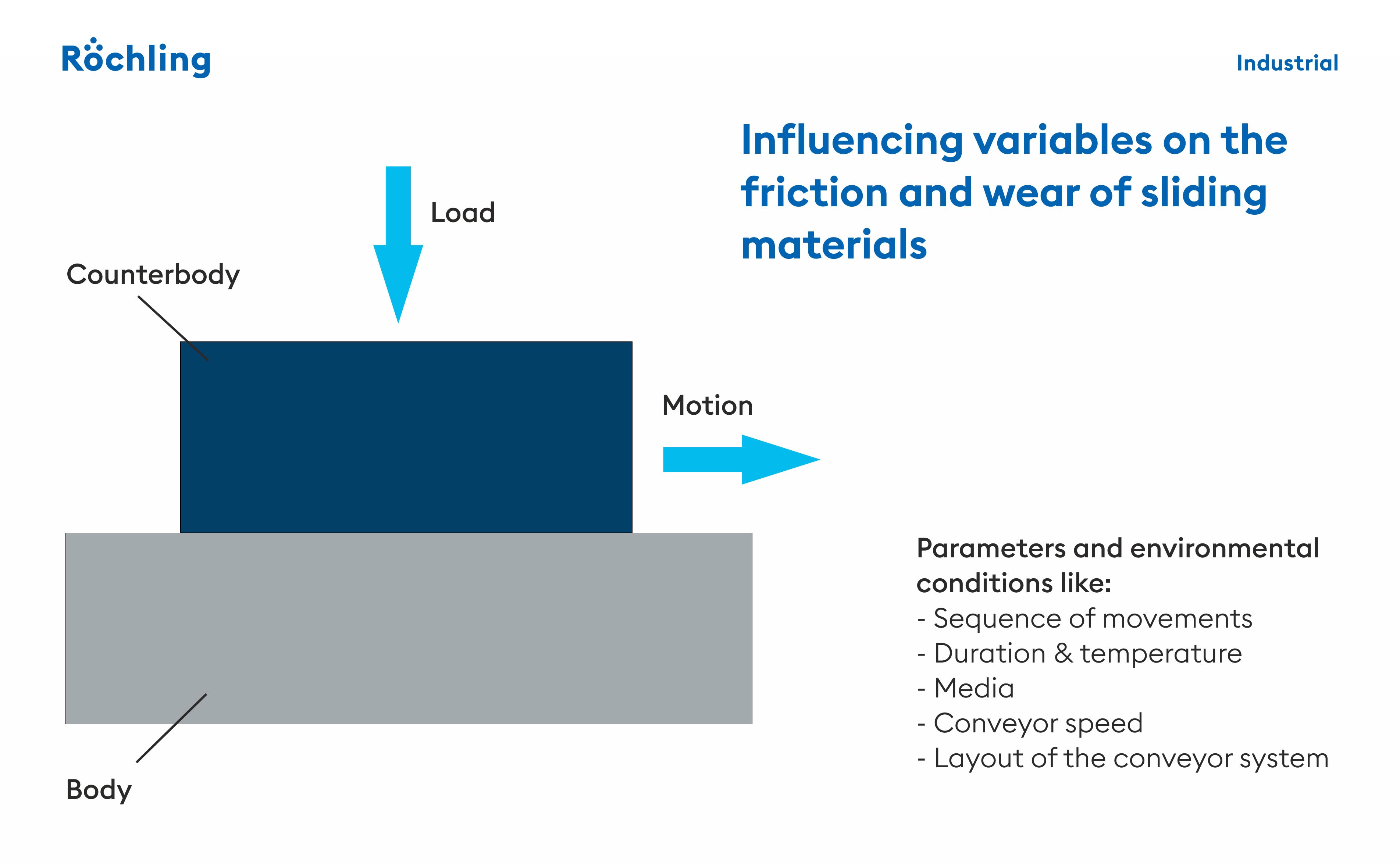

Tribological system: Different parameters have to be considered in selecting the right sliding plastics for your application

Tribological measuring system

A tribological system describes the interactions between moving surfaces that are in contact with each other. It typically consists of three main components: the base body, the mating body and the intermediate material (e.g. lubricant). The tribological properties of a system - friction, wear and lubrication - have a significant influence on the efficiency and service life of mechanical components. Through the targeted use of special materials, such as our high-performance plastics with optimised sliding properties, friction losses can be reduced, wear minimised and the performance of machines and systems increased.

LubX® CV+

With LubX CV+ we are expanding the proven LubX® product family with a solution specially optimised for high-speed systems. The further developed material properties ensure further reduced friction, improve energy efficiency and reduce maintenance and serving costs - ideal for modern intralogistics processes with high speeds.

  • LubX CV+

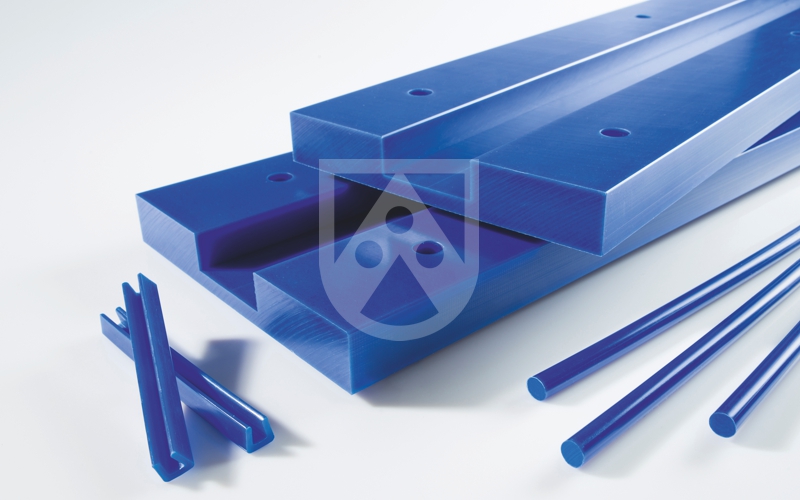

LubX® CV

Sliding material developed particularly for systems that are to be operated at higher speeds and compressive loads and thus higher productivity.









LubX® CV AST color

Permanently anti-static sliding material, coloured and having excellent sliding properties. Particularly suitable for conveyor systems that are to be operated at higher speeds and where an anti-static effect is required.

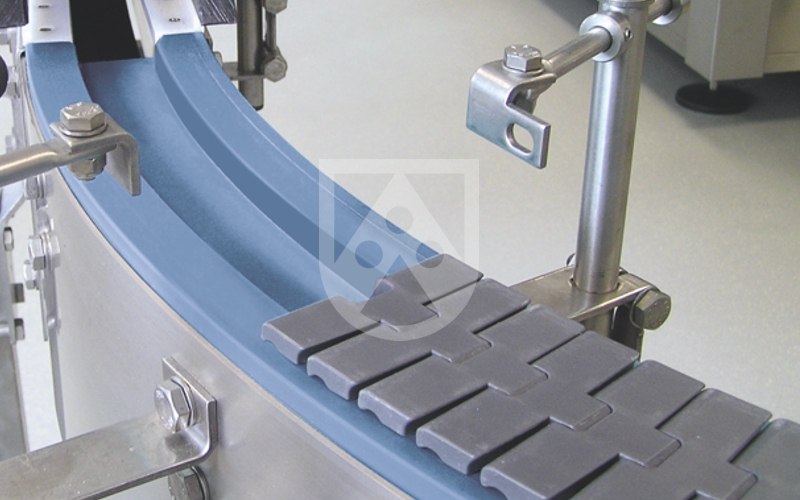

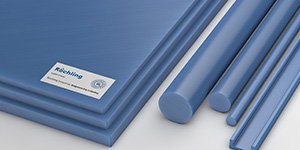

LubX® C

High-performance sliding material, specifically adapted to POM and steel and having outstanding dry-running properties.

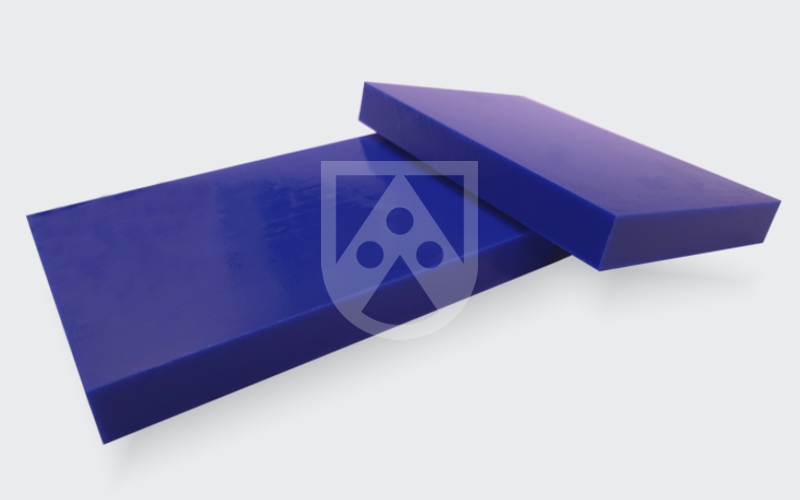

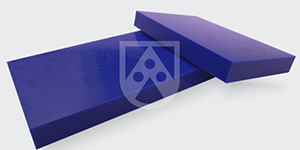

LubX® CQ

Sliding material developed particularly for systems that are to be operated at higher speeds and compressive loads and thus higher productivity.。

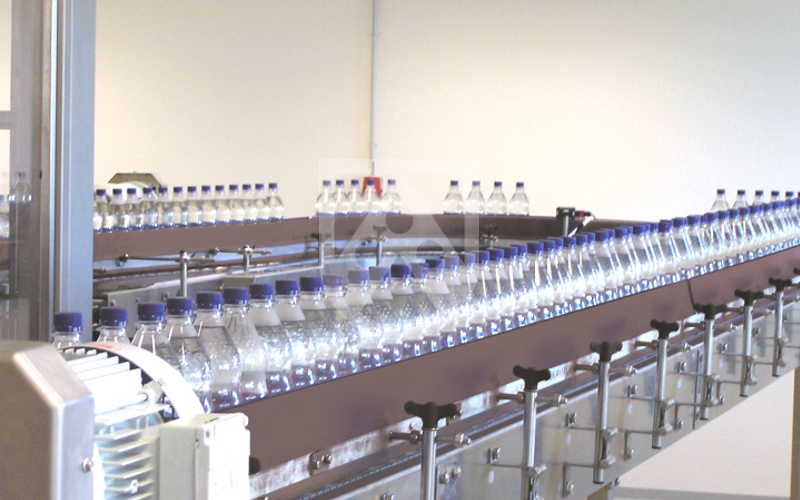

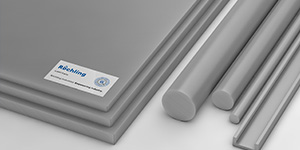

LubX® S

High-performance sliding material, especially adapted to a mating surface made of PET, having outstanding dry running properties.

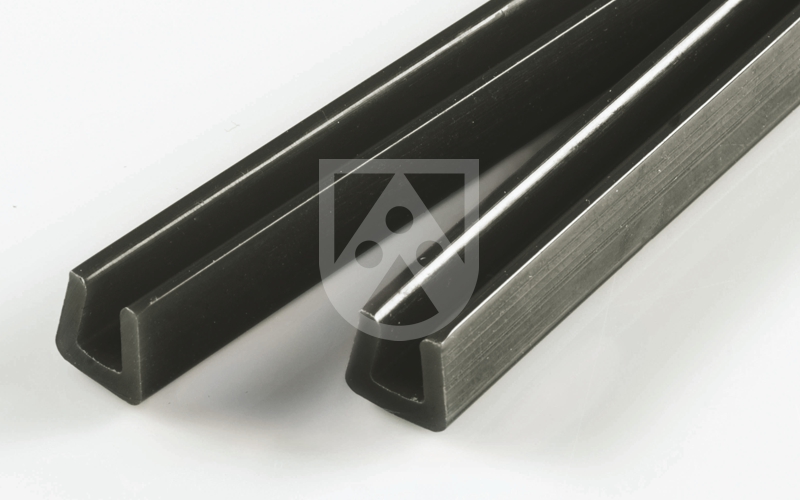

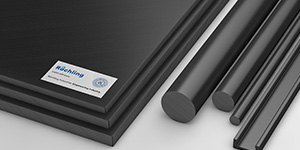

LubX® AST black

Anti-static sliding material that combines excellent tribological properties with controlled electrostatic discharge. Especially for systems in materials handling that are to be operated at high speeds.

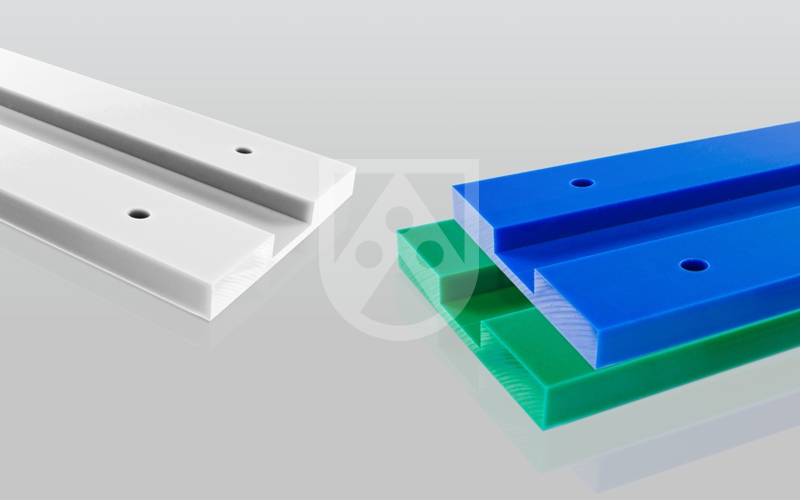

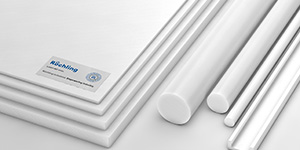

LubX® AST color

Anti-static sliding material coloured, for the design of economical and safe conveyor systems for transporting sensitive goods.

 Sliding Plastic - Low friction plastics - low friction materials - sliding material LubX® AST color



Do you have questions about choosing the right material?

We will be happy to advise you on the selection of the right sliding materials for your application. Simply use our contact form at the bottom of the page and write to us.
