Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 252060 | Polystone® ECTFE natural pressed | sheet | sheet | natural | 50 x 1000 x 2000 mm | 2,000 mm | 1,000 mm | 50 mm |

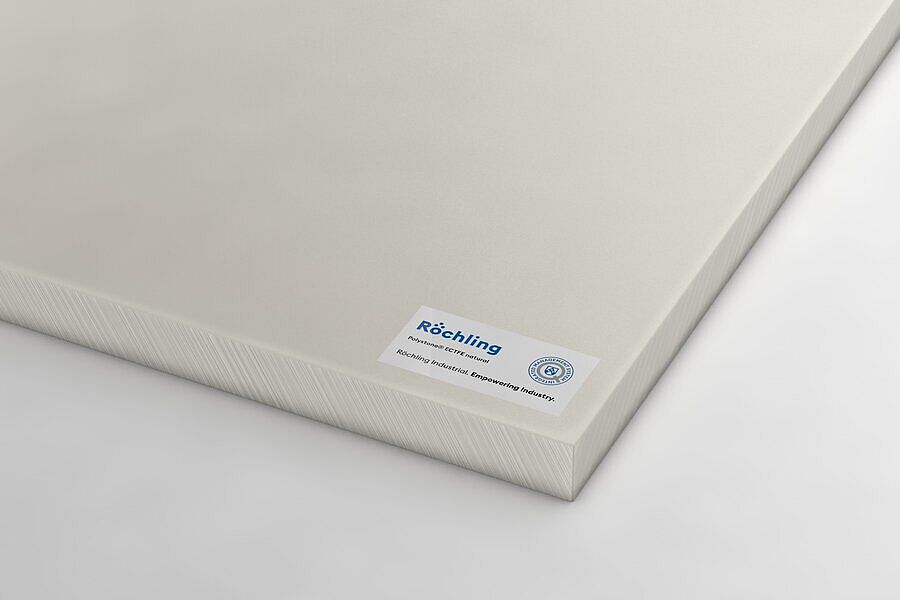

Technical Specifications Polystone® ECTFE natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >1,65 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >30 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1600 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,15 (*) |
| Service temperature, long term | Average | °C | -70...150 (*) |
| Service temperature, short term (max.) | Average | °C | -60...180 (*) |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Arc resistance | IEC 60093 | degree | L4 (*) |
