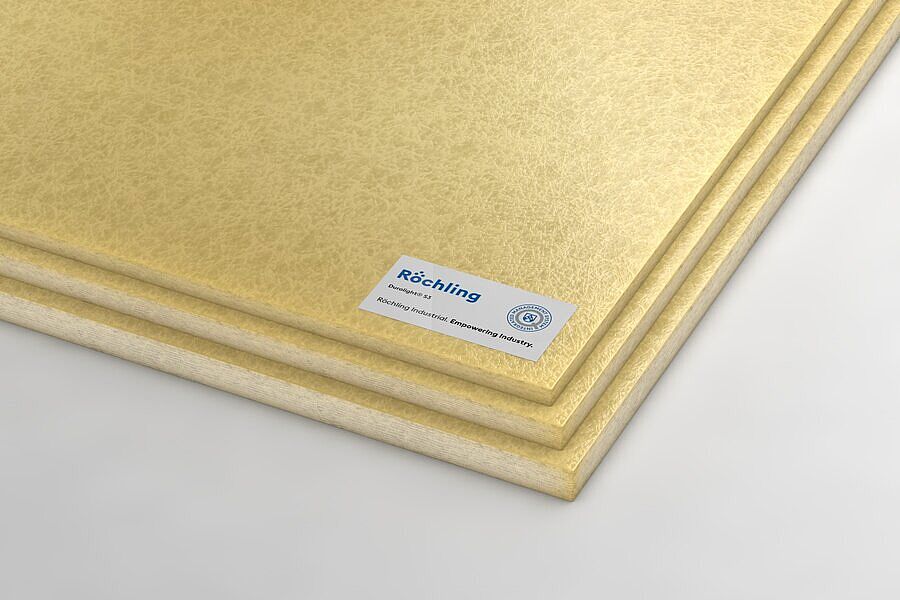

Durolight® S3

GFK-EP

sheet
QR-Code

Characteristics

  • Low thermal conductivity
  • High mechanical strength
  • Glass-reinforced thermoset SMC high-pressure laminate developed for applications at cryogenic temperatures

Application Examples

绝缘负荷轴承管支架

Durolight® 是一种纤维增强型绝缘复合材料,其设计和开发是为了满足 LNG 应用中承载支架的热性能和机械性能。此材料导热性极低,能够在 -196 °C 到 +200 °C(-320 °F 到 392 °F)的温度范围内使用,是管道绝缘的极佳选择,也可以在石油和天然气行业内用作隔热。Durolight® 本身阻燃,不含卤素,耐受天气变化,也耐受摩擦和磨损。由于具有这些卓越的性能,Durolight® 得到了 Bechtel Corp、Linde AG 和 Tractebel S.A./N.V 等多家公司的认可。

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
438195Durolight® S3 pressed sheet sheet 2.440 x 1.220 x 4 (+/-0,5) mm 2,440 mm 1,220 mm 4 mm

Technical Specifications Durolight® S3

Test MethodUnitGuideline Value
DensityISO 1183g / cm31,85
Flexural strength RTISO 178MPa350
Flexural strength -196°CISO 178MPa500
Modulus of elasticity in flexion RTISO 178MPa17000
Modulus of elasticity in flexion -196°CISO 178MPa20000
Compressive strength RTISO 604MPa450
Compressive strength II RTISO 604MPa300
Compressive strength II -196°CISO 604MPa350
Compressive strength -196°CISO 604MPa550
Tensile strength II RTISO 527MPa280
Tensile strength II -196°CISO 527MPa360
Impact strength II (Charpy)ISO 179kJ / m290
Test MethodUnitGuideline Value
Thermal conductivity W / (m * K) 0,3
Coefficient of linear expansion TMA (Mettler)10-6 x K-1 65
Coefficient of linear expansion IITMA (Mettler)10-6 x K-1 13
Operating temperature°C-196 to +180
Test MethodUnitGuideline Value
Water absorption (method 1)ISO 62% 0,1
