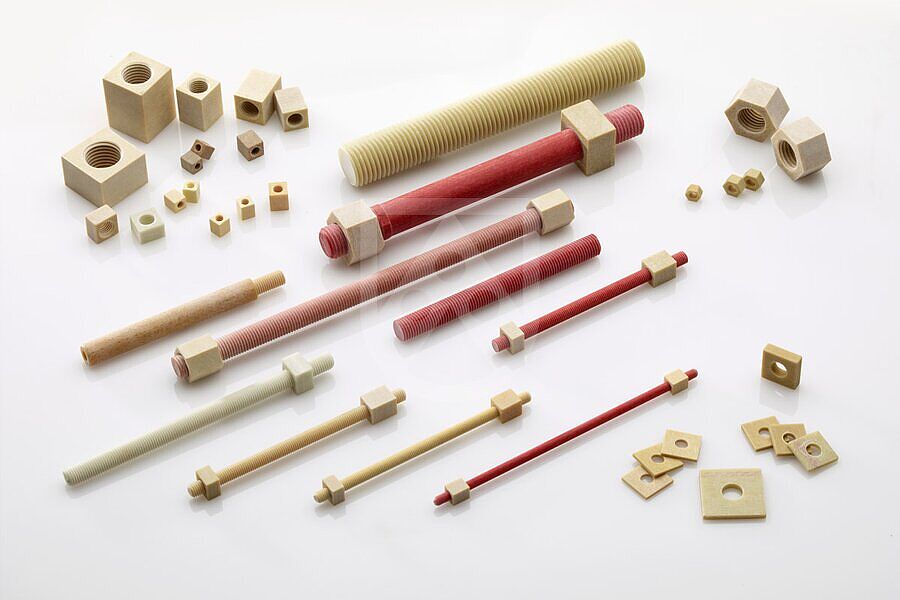

Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 100259 | Durostone® EPR S5 pressed | threaded rod | threaded rod | M 10 x 1.900 mm | 1,900 mm | 10 mm | ||||
| Stock item (no MOQ) | 100260 | Durostone® EPR S5 pressed | threaded rod | threaded rod | M 12 x 1.900 mm | 1,900 mm | 12 mm | ||||
| Stock item (no MOQ) | 100261 | Durostone® EPR S5 pressed | threaded rod | threaded rod | M 16 x 1.900 mm | 1,900 mm | 16 mm | ||||
| Stock item (no MOQ) | 100262 | Durostone® EPR S5 pressed | threaded rod | threaded rod | M 20 x 1.900 mm | 1,900 mm | 20 mm | ||||
| Stock item (no MOQ) | 101506 | Durostone® EPR S5 pressed | threaded rod | threaded rod | M 6 x 1.900 mm | 1,900 mm | 6 mm | ||||
| Stock item (no MOQ) | 101507 | Durostone® EPR S5 pressed | threaded rod | threaded rod | M 8 x 1.900 mm | 1,900 mm | 8 mm | ||||
| Stock item (no MOQ) | 101508 | Durostone® EPR S5 pressed | threaded rod | threaded rod | M 30 x 1.900 mm | 1,900 mm | 30 mm | ||||
| No stock item (MOQ) | 272470 | Durostone® EPR S5 pressed | threaded rod | threaded rod | M 24 x 1.900 mm | 1,900 mm | 24 mm |
Technical Specifications Durostone® EPR S5
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ISO 1183 | g / cm3 | 1,9 |
| Flexural strength ┴ | ISO 178 | MPa | 500 |
| Modulus of elasticity in flexion ┴ | ISO 178 | MPa | 20000 |
| Compressive strength ┴ | ISO 604 | MPa | 300 |
| Tensile strength II | ISO 527 | MPa | 400 |
| Impact strength II (Charpy) | ISO 179 | kJ / m2 | 100 |
| Delamination force II | DIN 53463 | N | 4000 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity ┴ | W / (m * K) | 0,3 | |
| Coefficient of linear expansion II | TMA (Mettler) | 10-6 x K-1 | 10 - 20 |
| Temperature index | IEC 60216 | T.I. | 180 |
| Insulation class | IEC 60085 | / | H |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Electric strength 90°C under oil ┴ | IEC 60243 | kV / mm | 13 |
| Relative permittivity (50 Hz) | IEC 60250 | εr | ≈ 5 |
| Specific surface resistance | IEC 60093 | Ω | 1013 |
| Specific volume resistance | IEC 60093 | Ω x cm | 1014 |
| Comparative tracking index | IEC 60112 | CTI | 225 |
