Polystone® PPs CubX® (Homopolymer) grey
PP-H
Polystone® PPs CubX®: Polystone® PP，不易燃烧(B1)，可用于多类敏感的应用领域敏感的应用领域
- 纵向和横向刚度高
- 耐化学腐蚀性强
- 重量轻，容易处理
- 隔热性能好
- 很容易通过加热组件对接焊、热气焊、挤压焊等方法完成焊接
dust grey, similar RAL 7037

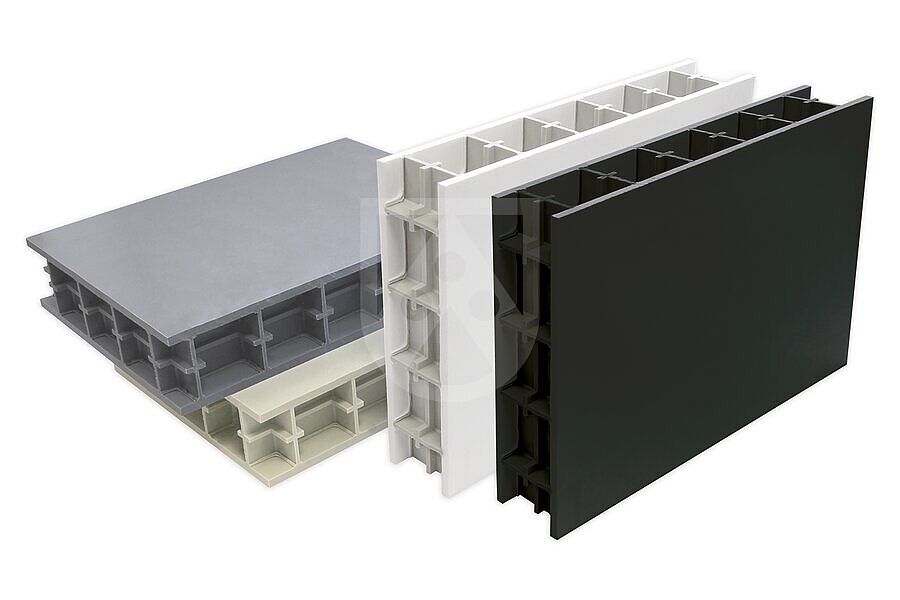

cross-ribbed twin-wall sheet
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 429527 | Polystone® PPs CubX® (Homopolymer) grey | cross-ribbed twin-wall sheet | cross-ribbed twin-wall sheet | dust grey, similar RAL 7037 | 2.000 x 1.500 x 57 mm | 2,000 mm | 1,500 mm | 57 mm |
Technical Specifications Polystone® PPs CubX® (Homopolymer) grey
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | ISO 8302 | Tested with: GHP 500-1, Single-sheet process | W / (m * K) | Lambda 0,18 |
| Density | DIN EN ISO 1183 | g / cm3 | 0,315 |
| Area weight | kg/m2 | 17,67 | |
| Weld strength lattice / covering sheets | MPa | ≥ 20 | |
| Flatness | DIN EN ISO 15860 | mm/m | ≤ 3 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density, RT | DIN EN ISO 1183 | g / cm3 | 0,94 |
| Notched impact strength, RT | DIN EN ISO 179 EA1 | kJ / m2 | 4 |
| Melt flow rate (MFR) 2,16 kg, 230 °C | DIN EN ISO 1133 | g / 10 min | 0,45 |
| Yield strain, RT | DIN EN ISO 527 | % | 7,19 |
| Yield stress, RT | DIN EN ISO 527 | N/mm² | 32 |
| Thermal properties, along, 150 °C | DIN EN ISO 15013 | % | 0,33 |
| Thermal properties, transverse, 150 °C | DIN EN ISO 15013 | % | 0,17 |
| Tensile modulus of elasticity, RT | DIN EN ISO 527 | MPa | 1300 |
