Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 361526 | Trovidur® EPC white extruded | sheet | sheet | T-182 white | 5 x 1500 x 3000 mm | 3,000 mm | 1,500 mm | 5 mm | ||
| Stock item (no MOQ) | 361527 | Trovidur® EPC white extruded | sheet | sheet | T-182 white | 10 x 1500 x 3000 mm | 3,000 mm | 1,500 mm | 10 mm | ||
| Stock item (no MOQ) | 361911 | Trovidur® EPC white extruded | sheet | sheet | T-182 white | 20 x 1500 x 3000 mm | 3,000 mm | 1,500 mm | 20 mm | ||
| Stock item (no MOQ) | 362783 | Trovidur® EPC white extruded | sheet | sheet | T-182 white | 4 x 1500 x 3000 mm | 3,000 mm | 1,500 mm | 4 mm | ||
| Stock item (no MOQ) | 362788 | Trovidur® EPC white extruded | sheet | sheet | T-182 white | 6 x 1500 x 3000 mm | 3,000 mm | 1,500 mm | 6 mm | ||
| Stock item (no MOQ) | 362789 | Trovidur® EPC white extruded | sheet | sheet | T-182 white | 8 x 1500 x 3000 mm | 3,000 mm | 1,500 mm | 8 mm | ||
| Stock item (no MOQ) | 362790 | Trovidur® EPC white extruded | sheet | sheet | T-182 white | 15 x 1500 x 3000 mm | 3,000 mm | 1,500 mm | 15 mm |

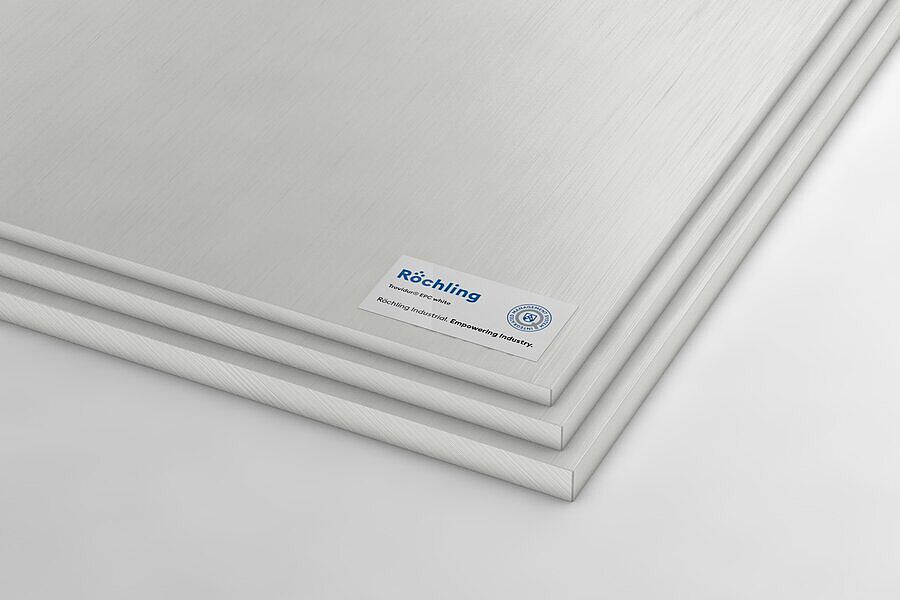

Technical Specifications Trovidur® EPC white
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,44 |
| Water absorption | DIN EN ISO 62 | % | 0,2 |
| Flammability from 4 mm | UL 94 | V0 | |
| Flammability (Thickness 4 mm) | DIN 4102 | B1 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 52 |
| Elongation at break | DIN EN ISO 527 | % | 20 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2800 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 4 |
| Shore hardness | DIN EN ISO 868 | scale D | 81 |
| Ball Hardness | ISO 2039 | MPa | 110 |
| Compressive strength | DIN EN ISO 604 | MPa | 75 |
| Bending strength | DIN EN ISO 178 | MPa | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,16 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 76 |
| Service Temperature | °C | -15 ... +60 | |
| Heat deflection temperature | DIN EN ISO 75 | °C | 68 |
| Coefficient of linear thermal expansion | DIN EN ISO 11359-2 | mm/m K | ∼ 0,075 |
| Glow wire ignition tempearture | DIN EN 60695-2-13 | °C | 990 |
| Glow wire flammability index | DIN EN 60695-2-12 | °C | 960 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,2 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,02 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
| Dielectric strength | IEC 60243 | kV / mm | 12 |
| Comparative tracking index | IEC 60112 | CTI | 600 |
